Style Properties

Open Style Properties#

In SetManager → STYLES, right-click a style → Properties. The SetManager view is replaced by Style Properties; Back returns.

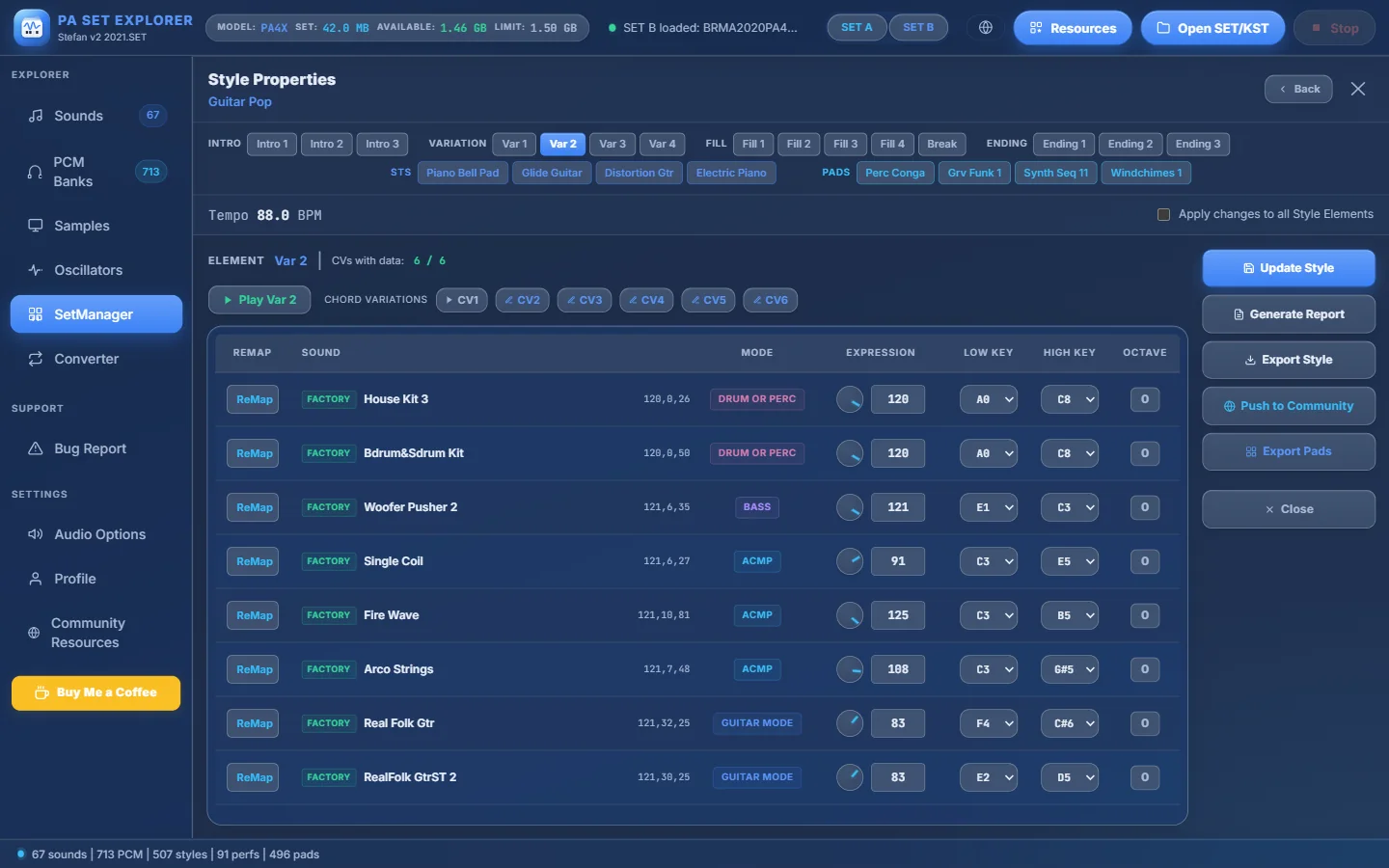

The Style Properties screen#

PA SET Explorer

1. 1The style elements: Intro 1–3, Var 1–4, Fill 1–4, Break, Ending 1–3. Click one to see its tracks.
2. 2STS 1–4 — the Single Touch Settings of the style (with their names).
3. 3PADS 1–4 — the pads assigned to the style. Double-click to play one.
4. 4The style tempo.
5. 5Apply changes to all Style Elements — ON: a change goes to the same track in every element. OFF: only to the current element (all its Chord Variations).
6. 6The element you are viewing and how many Chord Variations (CVs) have data.
7. 7Play the element in the Style Player.
8. 8Chord Variations CV1–CV6. Click to play one; right-click for Play / Event Editor.
9. 9ReMap — choose another sound for this track.
10. 10The track’s sound: bank type, name and (MSB, LSB, PC).
11. 11The track mode: Drum, Perc, Bass, ACMP or Guitar Mode.
12. 12Expression — knob or 0–127 box.
13. 13Low Key / High Key — the keyboard range of the track (A0 – C8).
14. 14Octave (from the style’s STS, read-only).
15. 15Update Style — write all track values into the style.
16. 16Generate Report — a text report of the style.
17. 17Export Style — save it in another format.
18. 18Push to Community.
19. 19Export Pads — the style’s pads as Yamaha or Medeli pads.
20. 20Back to SetManager.

What you can change#

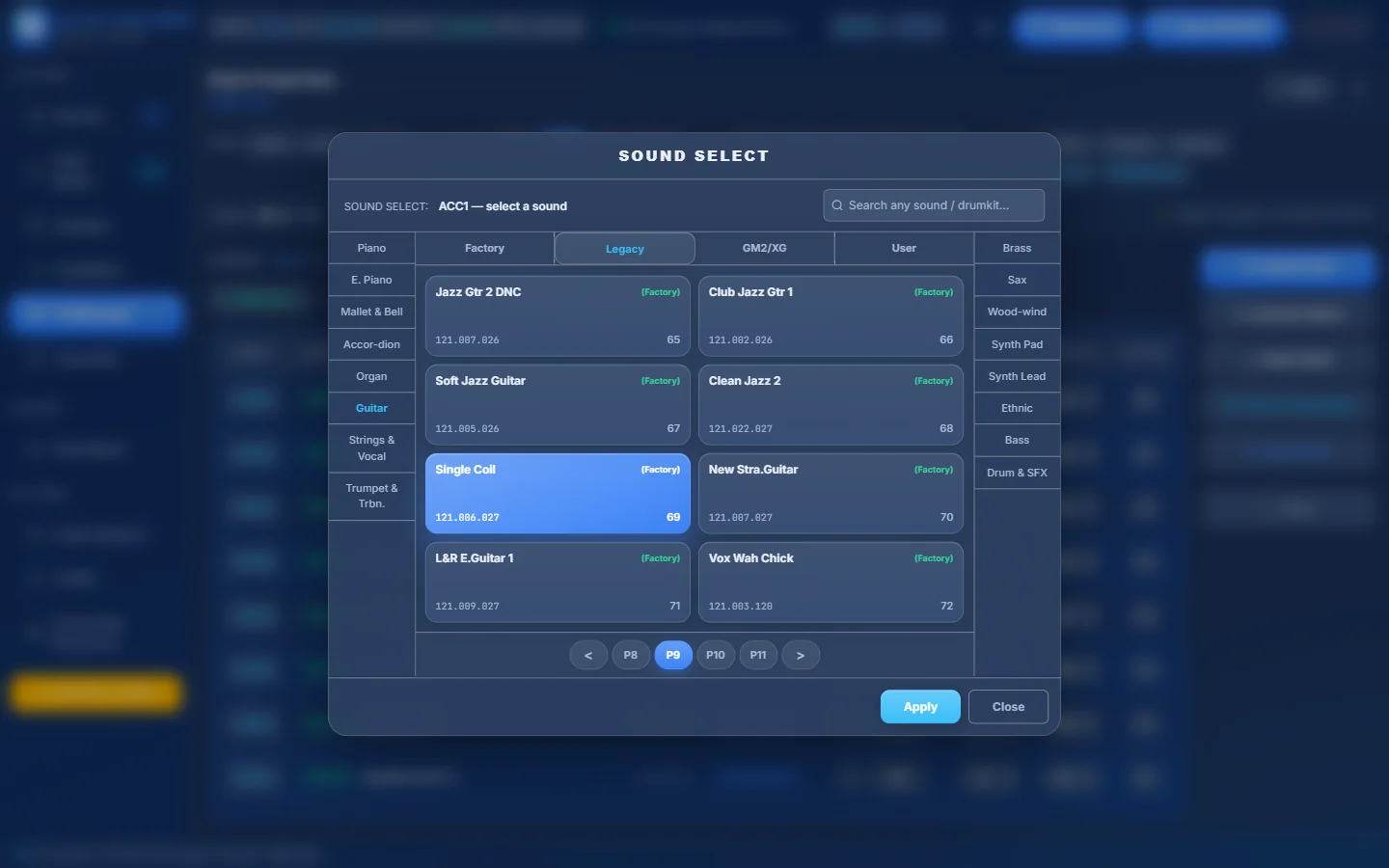

ReMap — choose another sound#

PA SET Explorer

1. 1Which track you are changing (here ACC1).
2. 2Search a sound by name.
3. 3Categories (Piano, E.Piano, Mallet & Bell, Accordion, Organ, Guitar, Strings & Vocal, Trumpet & Trombone…)…
4. 4…and more categories on the right.
5. 5Factory, Legacy, GM2/XG or User sounds.
6. 6Each sound with its MSB.LSB.PC numbers. The current one is highlighted.
7. 7Pages of the category.
8. 8Apply — use the chosen sound.

Single Touch Settings (STS)#

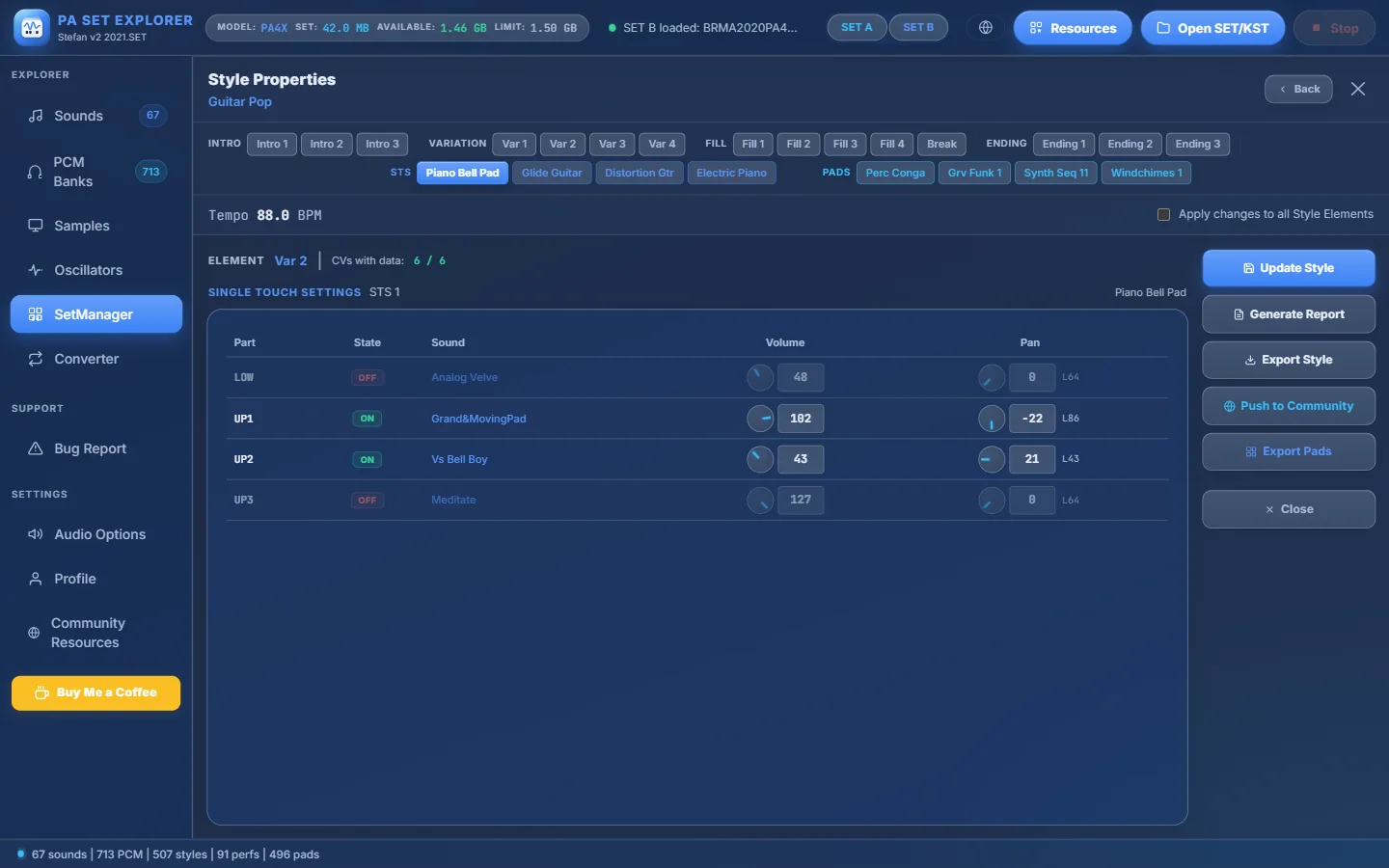

Click one of the STS buttons to see its four keyboard parts:

PA SET Explorer

1. 1STS 1 (“Piano Bell Pad”).
2. 2SINGLE TOUCH SETTINGS — STS 1.
3. 3State of each part: LOW, UP1, UP2, UP3 — ON or OFF.
4. 4Sound of each part — click a row to change it.
5. 5Volume…
6. 6…and pan of each part.

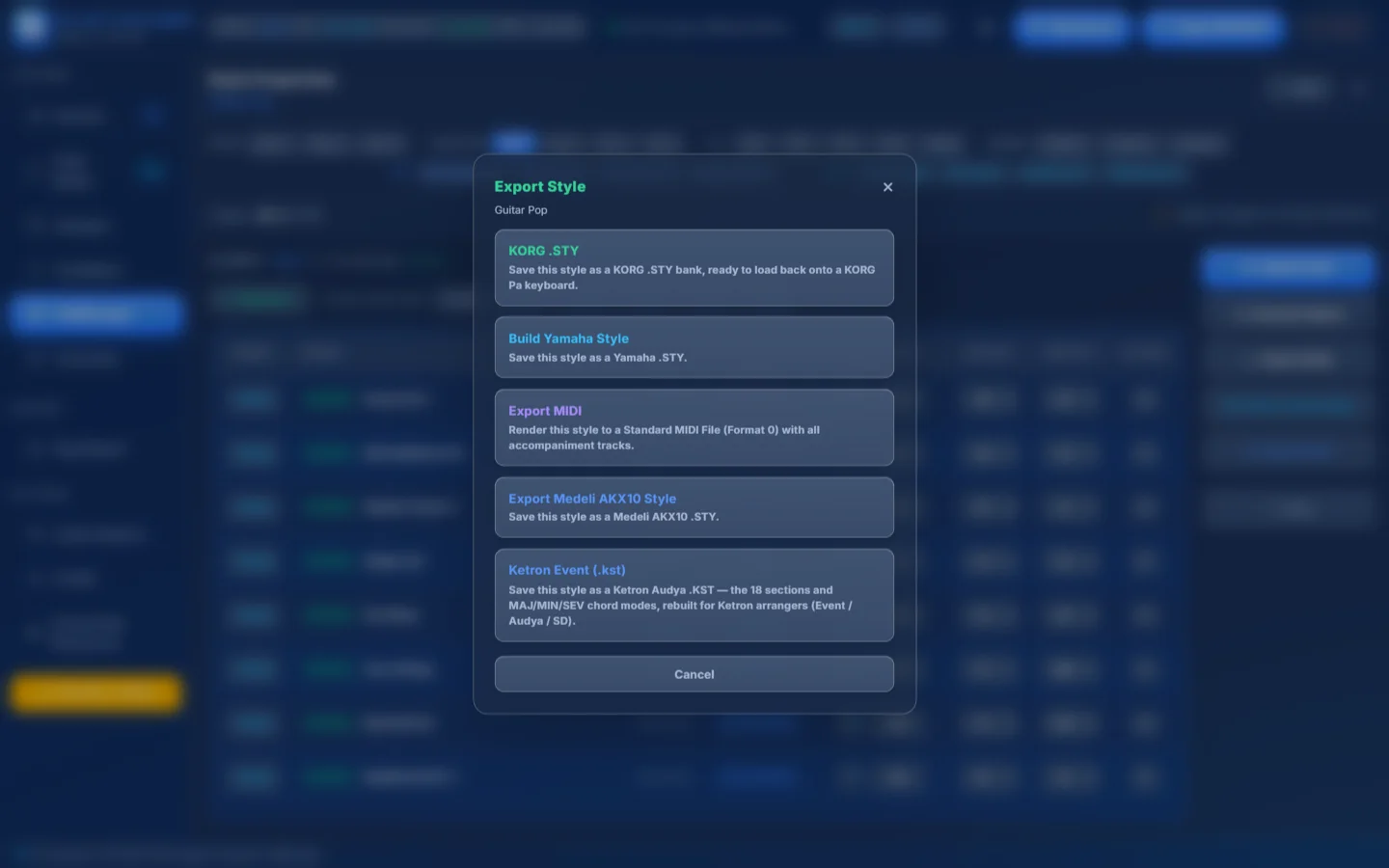

Export Style#

PA SET Explorer

1. 1KORG .STY — a KORG bank ready to load on a Pa keyboard.
2. 2Build Yamaha Style — a Yamaha .STY.
3. 3Export MIDI — a Standard MIDI File with all accompaniment tracks.
4. 4Export Medeli AKX10 Style — a Medeli .STY.
5. 5Ketron Event (.kst) — 18 sections with MAJ/MIN/SEV, for Ketron Event / Audya / SD.

For Yamaha and Medeli you may be asked whether to transcribe Guitar Mode tracks into real guitar notes.

The Event Editor — edit the notes#

1. 1

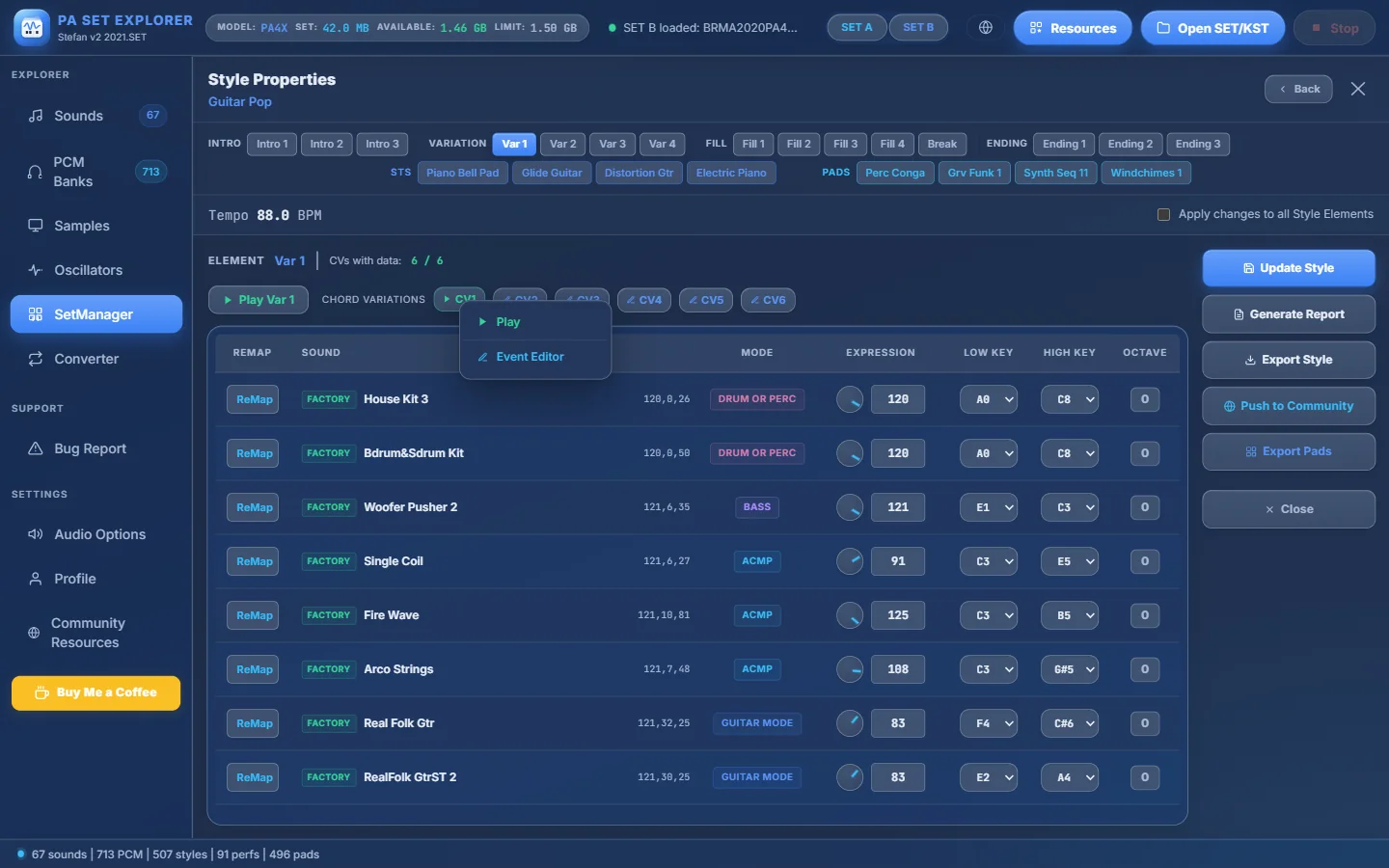

   Right-click a Chord Variation

   Right-click CV1…CV6 and choose Event Editor.

   PA SET Explorer



   1. 1CV1.
   2. 2Its menu: Play / Event Editor.
   3. 3Event Editor.

2. 2
   Edit

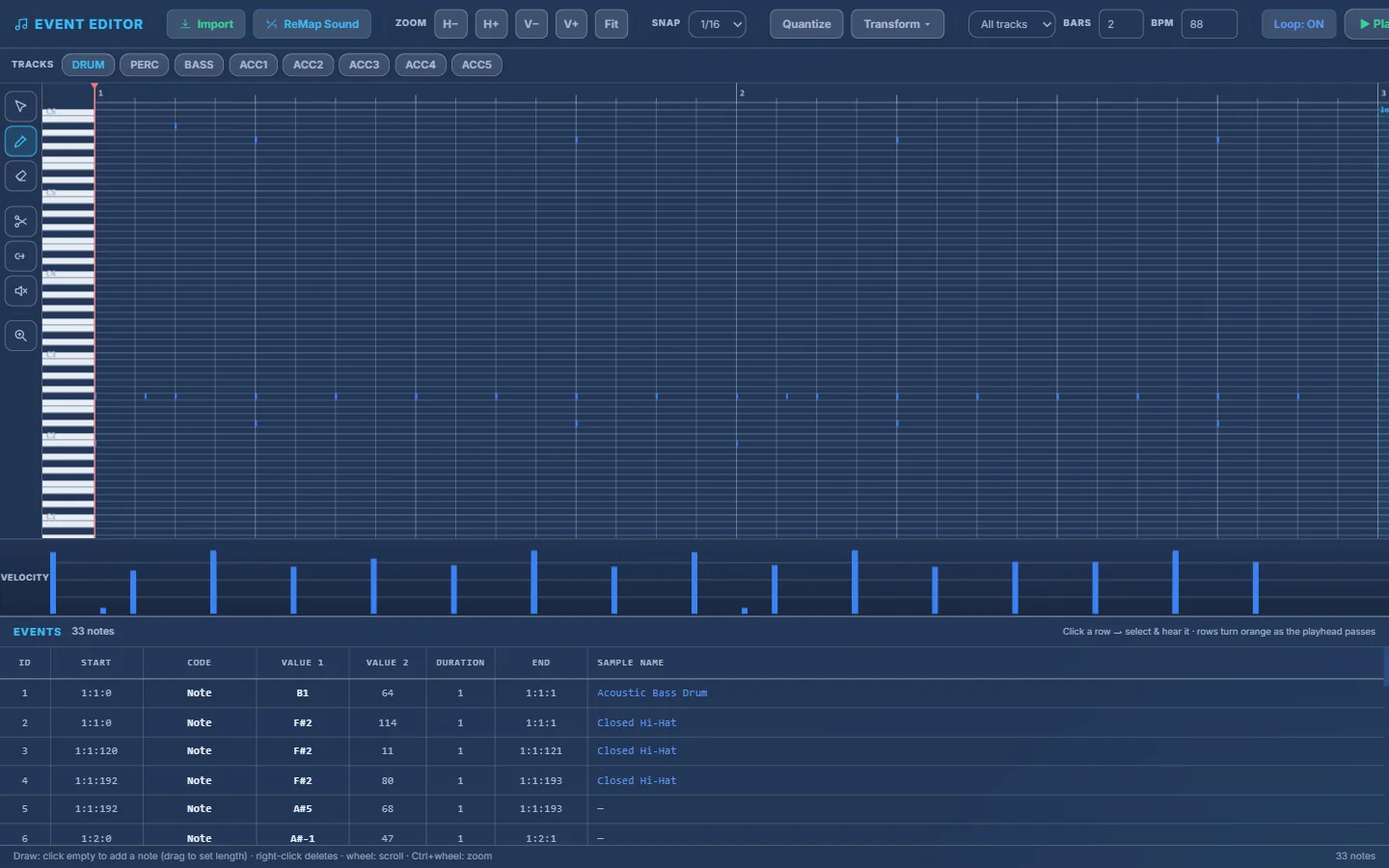

   A full piano-roll editor opens for that element and CV:

   PA SET Explorer



   1. 1Event Editor — style, element and CV.
   2. 2Import — bring a track from another style (step-by-step wizard).
   3. 3ReMap Sound — change the sound of this track.
   4. 4Zoom horizontally / vertically and Fit.
   5. 5Snap grid (1/1 … 1/64 or Off).
   6. 6Quantize (grid, strength, swing) and Transform (transpose ±12, legato, staccato, velocity, humanize, reverse).
   7. 7All tracks or Solo track.
   8. 8Bars (loop length) and BPM.
   9. 9Loop, ▶ Play, ■, then Save CV (scroll right on small screens).
   10. 10The tracks of the CV — DRUM, PERC, BASS, ACC1–ACC5.
   11. 11Tools: Select (S), Draw (D), Erase (E), Split (K), Glue (G), Mute (M), Zoom (Z).
   12. 12The piano roll — click empty to add a note, drag to move, drag the edge to resize, right-click to delete.
   13. 13Velocity lane — drag the bars.
   14. 14Events list — click a row to select and hear the note; rows turn orange as the playhead passes.
